Multi Directional Omniwheel Robot & Conveyor Wheels

       Omniwheels At A Glance

Two Omniwheels must be used together to provide support over 360 of rotation. Please order accordingly.



         Applications
  • Powered transfer tables
  • Turn tables
  • Conveyor wheels
  • Robot wheels
         Construction
  • Heavy duty aluminum body
  • Heavy duty aluminum rollers
  • Heavy duty rubber or polyurethane rollers
  • Lightweight plastic body
  • Lightweight plastic rollers

>> More Executive Summary




The omnidirectional movement of the Omniwheel comes from its unique design. The Omniwheels design is based upon the use of a series of free turning barrel-shaped rollers, which are mounted, in a staggered pattern around the periphery of a larger diameter main wheel. The combination of these two rolling elements provides a compact and inexpensive unit for moving heavy loads in any direction along a plane, doing so smoothly and with minimum effort. Unlike competitive transfer devices (ball transfers, swivel casters, etc.)

Applications For The Omniwheel Heavy-Duty Manual Or Powered Transfer Systems

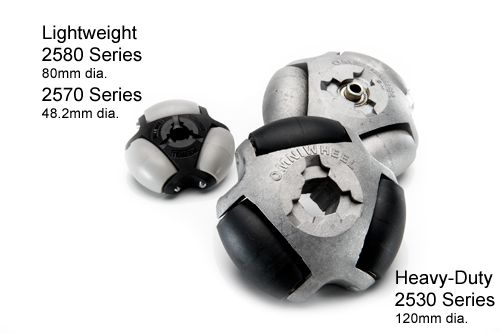

The omnidirectional 2530 series Omniwheels are well suited for use in heavy-duty manual or powered transfer systems. The omnidirectional 2570 and 2580 series Omniwheels are plastic, corrosion resistant and well suited for application where dirt, dust and moisture may be present.

Omni Directional Or Powered Bi Directional
Omniwheels are used for omnidirectional robot wheels or powered bidirectional robot wheels.Click on picture to enlarge.

Powered Transfer Tables
Heavy duty Omniwheels are used in powered transfer tables. The rugged design of the Omniwheel allows it to move heavy loads in any direction.

More information on Transfer Tables.

Ordering Note:
Two Omniwheels must be used together to provide support over 360 of rotation. Please order accordingly.
