Rotacaster: a revolution in motion

Construction

• Monolithic wheel structure - no inserted roller axles
• Over-molded rollers – no external seams or joints

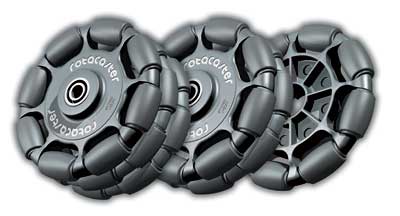

• Single, double or triple row wheel configurations
• Roller, bearing, bush and color options


Key Benefits

• Directional control and incline performance – fixed orientation
• Maneuverability and precise positioning – no swivel offset
• Load stability – fixed wheel base and load center
• Independent action – no coupling
• Load sharing – multi wheel combinations
• Simple mounting alternatives - minimal housing
• High impact and corrosion resistant
• No swivel maintenance

Applications
• Materials handling and service trolleys, carts and dollies
• Hand and platform trucks
• Conveyors transfer and manufacturing feed tables
• Mobile cabinets, shelving and work benches

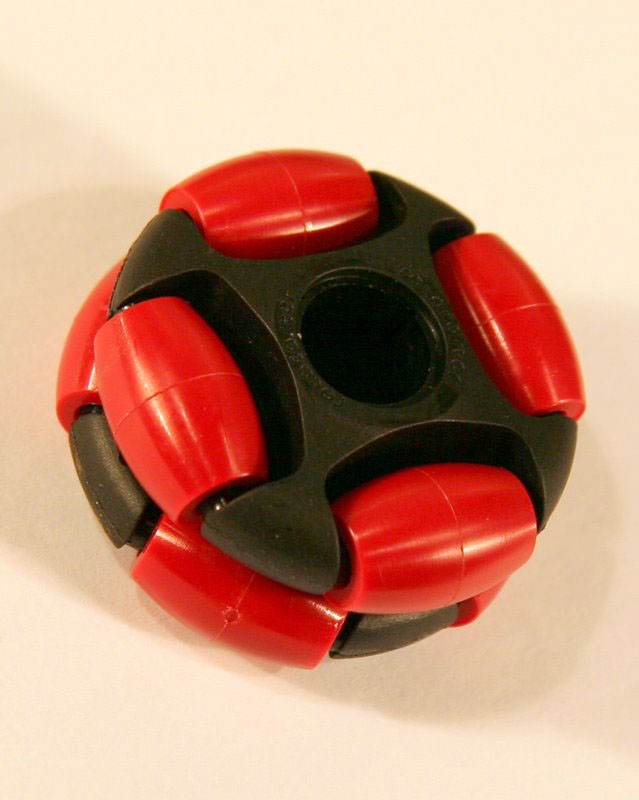

125mm diameter available in 1, 2 or 3 body, 48mm diameter in 2 body

Description
The Rotacaster Wheel can be use in almost any facet of industry, commerce and the home. Particularly suited for use in hospitals, hotels, warehouses, workshops, factories, shopping centres, supermarkets, airports - any area where movement of items is required on trolleys, carts, racks and bins, on frames or conveyor systems.

Rotacaster® Specifications Dimensions
Double              RW640 Diameter Width Weight Bore w/bearing Load Capacity	48mm/1.89" 25.5mm/1.06" .037kg/1.3oz" 12.7mm/.5" 35kg/77.16lb	Purchase
Double            RW641 Diameter Width Weight Bore w/bearing Load Capacity	48mm/1.89" 25.5mm/1.06" .037kg/1.3oz" 12.7mm/.5" 35kg/77.16lb	>Contact Sales to Purchase
Single            RW610 Diameter Width Weight Bore w/keyway(6.6mm w x2.75mm dp) Load Capacity	125mm/4.92" 25.5mm/1.06" .170kg/6.0oz" 22mm/(bore for 7/8"shaft) 50kg/110 lbs.	Purchase
Double            RW620 Diameter Width Weight Bore w/bearing Load Capacity	125mm/4.92" 44mm/1.72" .312kg/11.0oz" 10mm/.394" 90kg/200 lbs.	Purchase
Triple              RW630 Diameter Width Weight Bore w/bearing Load Capacity	125mm/4.92" 64mm/2.50" .454kg/16.0oz" 10mm/.394" 125kg/275 lbs.	Purchase

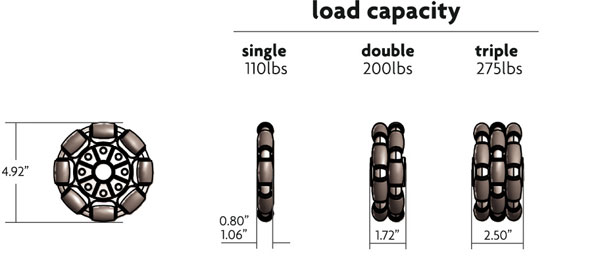

Imperial Measurements-large wheel

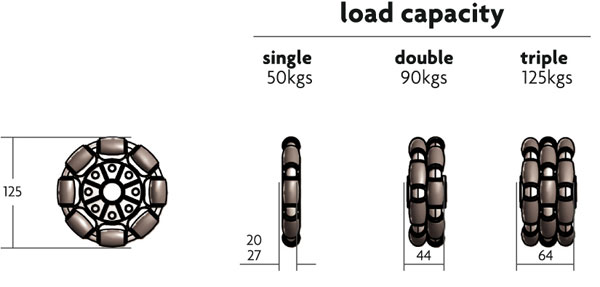

Metric Measurements-large wheel
Metric Measurements-small wheel                                                         load capacity                                                                              double body, 48mm diameter                                                                                                       35kg
Imperial Measurements-small wheel                                           load capacity                                                                               double body, 1.89" diameter                                                                                                     77.16lb
