Omniwheels Are Omni Directional Wheels & Powered Bi Directional Wheels

Heavy Duty Wheels

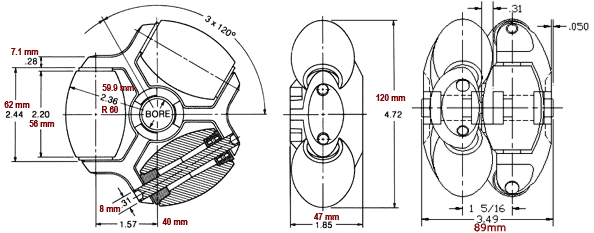

Omniwheel 2530 series specifications
2530 Series
Diameter 4.72" 120mm
Width 1.85" 47mm 89mm (paired)
Barrel length 2.20" 56mm
Barrel diameter:
Aluminum 1.57" 39.88mm
Polyurethane 1.58" 40.13mm


Lightweight Wheels

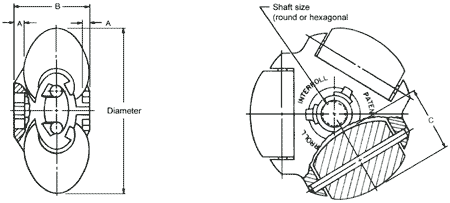

Omniwheel 2570 and 2580 specifications
2570
Diameter 1.9" 48.2mm
Bore .315" 8mm
Width .85" 21.6mm
Barrel length .94" 23.8mm
Barrel diameter .69" 17.5mm

2580
Diameter 3.15" 80mm
Bore 0.5" 12.7mm
Width 1.34" 34mm
Barrel length 1.55" 39.4mm
Barrel diameter 1.18" 30mm





The 2530 series wheels have aluminum bodies and a choice of aluminum barrels, rubber or polyurethane barrels. The 2530 Omniwheels are heavy duty with a load rating of 220 lbs, or 99.79kg per wheel set.

The 2570 and 2580 wheels have plastic bodies and barrels. They are lightweight with a load rating of 25 lbs, or 11.34kg per set for the 2570 and 75 lbs, or 34.02kg per set for the 2580.

Omniwheels are used as omni directional wheels and powered bi directional wheels on conveyors, manual and powered transfer systems and as robot wheels.
