The Multi Directional Movement Conveyor Wheel Transwheel® Specifications

2 Inch Standard Transwheel Models

Plain Bore		Plain Bore Models: 2051-1/4, 2051-1/4B, 2051-3/8, 2051-3/8G, 2051-1/2, 2051-10mm For applications where side clearance is assured allowing the wheel to rotate freely without a bushing. All plane bore dimensions Standard: 1/4", 3/8", 1/2" Metric: 6.35mm, 9.5mm, 10mm, 12.7mm Also available with Cat-Trak rollers
Bushed		Bushed Models: 2051B, 2051B8, 2052B Guarantees wheel side clearance in applications where wheel is clamped between rails or spacers. Has exact diameter, width, and bore of a skatewheel All bushed dimensions Standard: 1/4" Metric: 6.35mm, 8mm Also available with Cat-Trak rollers
Axled		Axled Models: 2051A Can be conveniently dropped into a slotted channel without the need for an axle. Shoulders on the built-in axle maintain wheel side clearance. All axle dimensions Standard: 1/4" Metric: 6.35mm Also available with Cat-Trak rollers
Keyway		Keyway Models: 2051K, 2051KG, 2052K The wheel mounts on a keyed shaft to provide powered movement of loads in wheel direction, while still allowing side movement. All keyway dimensions Standard: 1/2" Metric: 12.7mm Also available with Cat-Trak rollers
Sprocketed		Sprocketed Models: 2051S Sprocketed wheel turns on plain shaft when chain drive provides powered movement in wheel direction. All sprocketed dimensions Standard: 3/8" Metric: 9.5mm Also available with Cat-Trak rollers
Multiple Row		Multiple Row Models: 2052-3/8 The multiple row Transwheel provides smother rolling in single wheel applications. All multiple row dimensions Standard: 3/8" Metric: 9.5mm Also available with Cat-Trak rollers

4 Inch Standard Transwheel Models

Plain Bore		Plain Bore Models: 4201-3/4, 4201-1, 4201-1W For applications where side clearance is assured allowing the wheel to rotate freely without a bushing. All plane bore dimensions Standard: 3/4", 1" Metric: 19mm 25.4mm Also available with Cat-Trak rollers
Bushed		Bushed Models: 4201B, 4202B Guarantees wheel side clearance in applications where wheel is clamped between rails or spacers. All bushed dimensions Standard: 1/2" Metric: 12.7mm Also available with Cat-Trak rollers
Axled		Axled Models: 4201A Can be conveniently dropped into a slotted channel without the need for an axle. Shoulders on the built-in axle maintain wheel side clearance. All axle dimensions Standard: 1/2" Metric: 12.7mm Also available with Cat-Trak rollers
Keyway		Keyway Models: 4201K, 4202K, 4202KW The wheel mounts on a keyed shaft to provide powered movement of loads in wheel direction, while still allowing side movement. All keyway dimensions Standard: 1" Metric: 25.4mm Also available with Cat-Trak rollers
Sprocketed		Sprocketed Models: 4201S Sprocketed wheel turns on plain shaft when chain drive provides powered movement in wheel direction. All sprocketed dimensions Standard: 3/4" Metric: 19mm Also available with Cat-Trak rollers
Multiple Row		Multiple Row Models: 4202, 4202W The multiple row Transwheel provides smother rolling in single wheel applications. All multiple row dimensions Standard: 3/4" Metric: 19mm Also available with Cat-Trak rollers
Hex Bore		Hex Bore Model: 4201HB The wheel mounts on hex shaft to provide powered movement of load in wheel direction. All hex bore dimensions Standard: I.D. 7/8" - Width per Hex side .5" Metric: I.D. 22.2mm - Width per Hex side 12.7mm Also available with Cat-Trak rollers

Recommended Load Capacities

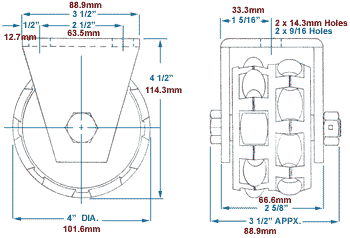

Transwheel Caster Dimensions

Height: Wheel Diameter: Caster Bracket Length: Caster Width: Hole Diameter:	4 1/2 inches 4 inches 3 1/2 inches 2 5/8 inches 9/16 inches	114.3mm 101.6mm 88.9mm 66.6mm 14.3mm
