Superwheel® For Gravity Conveyors & Material Handling Systems

Superwheel® Specifications
Dimensions
GWA101
Diameter
Width
Axle diameter
Axle width

GWA108
Diameter
Width
Axle diameter
Axle width		 1 7/8"
11/16"
1/4"
7/8"


1 7/8"
11/16"
3/8"
7/8"		 47.6 mm
17.5 mm
6.35 mm
22.2 mm


47.6 mm
17.5 mm
9.525 mm
22.2 mm

Superwheel Features
  • All-Plastic design
  • Low friction
  • No lubrication
  • Corrosion resistant
  • Interchangeable with other skate wheels

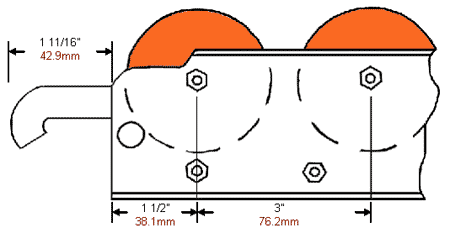

Superwheel and gravity section dimensions
Supersection Specifications
Rail width
Rail height
Width
Wheel alignment on center		 1"
2 1/2"
12", 18", 24"
3"		 25.4 mm
63.5 mm
304.8 mm,457.2 mm, 609.6 mm
76.2 mm

Features
  • Completely bolted construction
  • Formed 10 gage aluminum channel
  • Accurately aligned 1/4 inch, 6.35mm diameter steel axles
  • Aluminum spacers

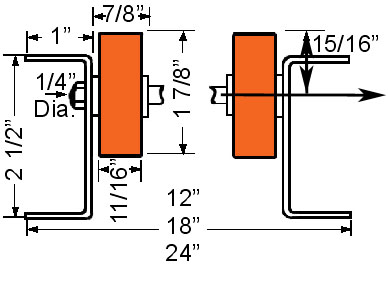

Superwheel and gravity section dimensions

Load Capacity
Superwheel 25 pounds, 11.36kg per wheel.
Supersection aluminum frame with distributed load, supports on 10 foot, 3048mm centers equals 500 pounds, 227.27kg
