Karry-AllŪ High-Lift & Low-Lift Dimensions & Specifications
To view Low-Lift Specifications
High-Lift
 |

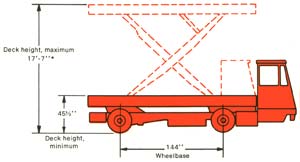

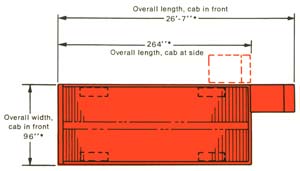

High-Lift Karry-AllŪ Dimensions |
 |
 |
|
Specifications
Payload, maximum Gross vehicle weight, maximum Lifting mechanism Lifting/lowering speed Cargo deck Engine Transmission Maximum highway speed Turning radius to outside of tire track Tires Steering Brakes |
14,000 pounds* 30,000 pounds hydraulic cylinders 45 seconds full travel 2 rows of 42” powered rollers User defined* User defined* 50 MPH* 25 ft. 3 in. 14 x 171/2 super single duplex* full power Air over hydraulic |
|
* Depending upon design requirements. A Van Body is also optionally available, as is a “Pup Trailer” with a 96” x 260” powered roller deck. The High-Lift Karry-AllŪ is one component of the total Kornylak cargo handling system. The total system includes powered and non-powered conveyor track sections, belt loaders, cargo lift, and other components to provide a fully automated cargo handling facility, which can be tailored to specific site requirements. |
|
Low-Lift
 |

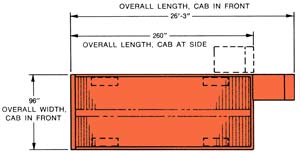

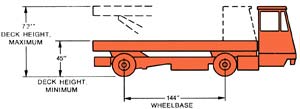

Low-Lift Karry-AllŪ Dimensions |
 |
 |
|
Specifications
Payload, maximum Gross vehicle weight, maximum Lifting mechanism Lifting/lowering speeds Cargo deck Power Transmission Maximum highway speed Turning radius to outside of tire track Tires Full power steering |
15,000 pounds* 30,000 pounds hydraulic cylinders infinitely variable 0-10 ft. per minute 2 rows of 42" powered rollers User defined* User defined* 50 mph* 25 ft. 3 in. 14 x 17 1/2 super hi-miler Air assisted hydraulic brakes |
|
* Depending upon design requirements. The Low-Lift Karry-AllŪ is part of the Kornylak system capability which includes powered and non-powered conveyor track sections, belt loaders, cargo lifts, terminal systems, warehouse systems, and other components which provide a fully-automated cargo handling facility which can be tailored to specific site requirements. In accordance with our established policy of constant improvement, we reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied, and particularly make no warranty of suitability for any particular purpose. |
|
