Strad-O-Lift® Dimensions & Specifications

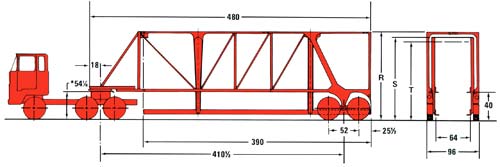

Dimensions |
|
 |
|
| *54 1/4" for oscillating fifth wheel, 49" height can also be provided. | |
Specifications |
|||
| Standard Models | 4A40 | 4E40 | 4G40 |
| R dimension...overall trailer height | 10'-6" | 12'-6" | 13'-6" |
| S dimension...inside frame height | 9'-3" | 11'-3" | 12'-3" |
| T dimension... inside clearance, load binder to ground | 8'-6" | 10'-6" | 11'-6" |
| Maximum recommended load width*** | 58" | 58" | 58" |
| Maximum load height** | 8'-3" | 10'-3" | 11'-3" |
| Height of lift* | 40" | 40" | 40" |
| Tire size | 12.00x20 | 12.00x20 | 12.00x20 |
| Approximate trailer weight, lbs., total | 15,470 | 16,000 | 17,160 |
| Weight at king pin | 4,950 | 5,141 | 5,491 |
| Weight at wheels | 10,520 | 10,859 | 11,669 |
|
*Greater lift available on special order **Width load at 12" road clearance. ***For 98" overall tire width; 56" for 96" overall tire width. |
|||
|
At additional cost, the Strad-O-Lift® trailer can be engineered to meet your specific needs
In accordance with our policy of constant improvement we reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied. |
|||
