Kornylak Developed Mini-Wheels® For Carton Flow & Gravity Flow Racks

Click on picture to enlarge
Mini-Wheel JWA100 lightweight, white carton flow wheel Click to enlarge..
JWA100
JWA100 White Wheel
Light Weight Conveyor Wheel
Recommended max load = 3 lbs., 1.36kg
List price per wheel - $0.20
Mini-Wheel JWA102 lightweight, red carton flow wheel. Click to enlarge.
JWA102
JWA102 Red Wheel
With Stainless Steel Axel
Light Weight Conveyor Wheel
Recommended max load = 25 lbs., 11.36kg
List price per wheel - $0.60
Mini-Wheel JSA100 spacer. Click to enlarge.
JSA100
JSA100 Spacer


List price per spacer - $0.12
Mini-Wheel JWA101 lightweight wheel bracket. Click to enlarge.
JWA101
JWA101 Bracket


List price per bracket - $0.15
Mini-Wheel JRA113 Aluminum Rail. Click to enlarge.
JRA113
JRA 113 Mini-Wheel Rail
Aluminum 10 feet, 3048mm Long

List price per 10' rail - $13.20

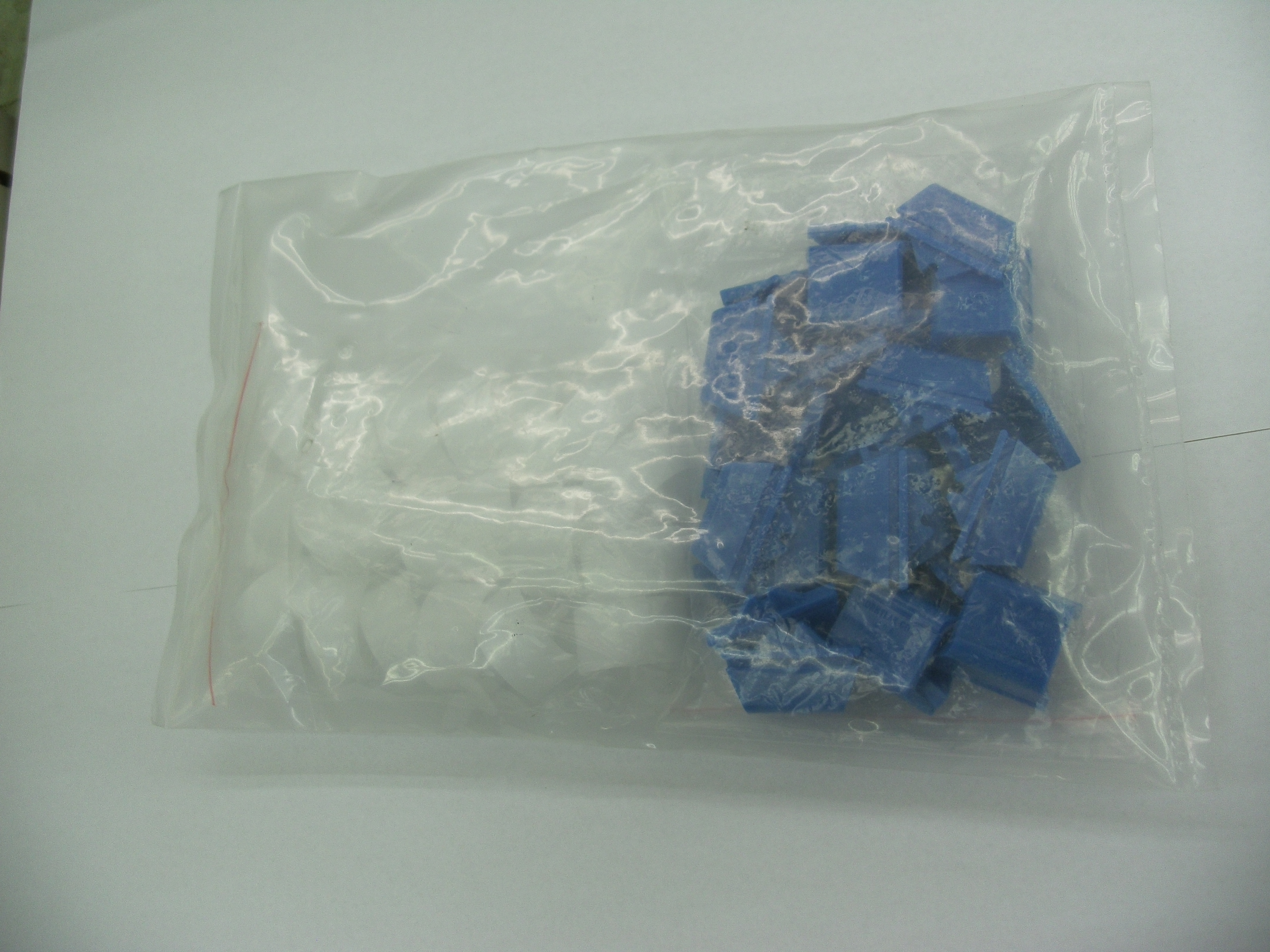

Mini-Wheel JWXA113 white wheels and brackets set (JWA100 + JWA101). Click to enlarge.
JXA113
JXA113 White Wheels & Brackets
(JWA 100 + JWA 101) Set

Bagged 110 Each
List price per set - $38.50

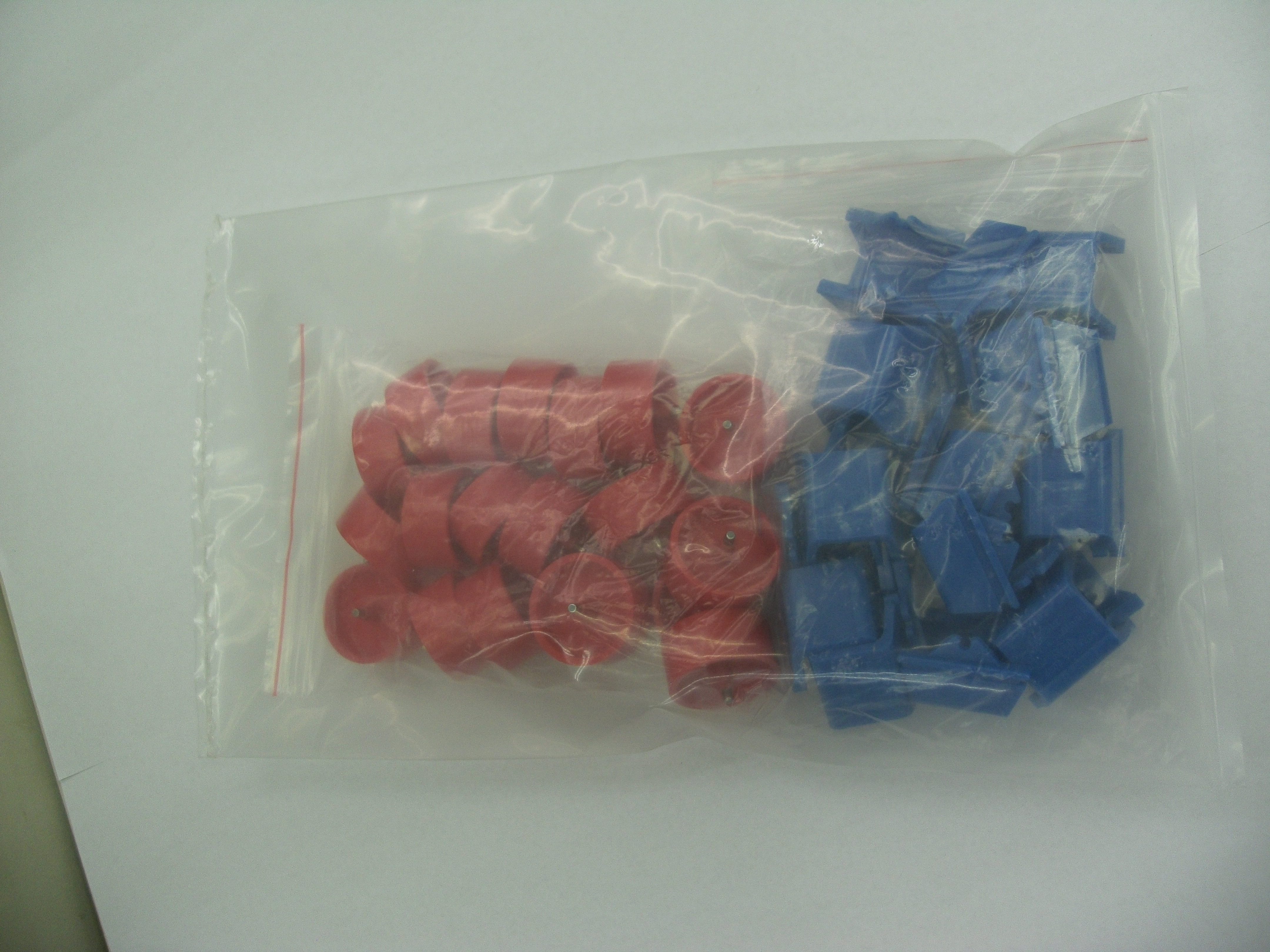

Mini-Wheel JWXA115 red wheels and brackets set (JWA102 + JWA101). Click to enlarge.
JXA115
JXA115 Red Wheel & Brackets
(JWA 102 + JWA 101) Set

bagged 110 Each
List price per set - $82.80
Mini-Wheel JWXA117 white wheels set (JWA100). Click to enlarge.
JXA117
JXA117 White Wheel (JWA100) bag
Light Weight Conveyor Wheel
Bagged 110 Each
List price per bag - $22.15
Mini-Wheel JWXA118 bracket set (JWA101). Click to enlarge.
JXA118
JXA118 Brackets (JWA 101) bag
Bagged 110 Each

List price per bag - $16.65
Mini-Wheel JWXA119 red wheels set (JWA102. Click to enlarge.
JXA119
JXA119 Red Wheels (JWA 102)
Light Weight Conveyor Wheel
Bagged 110 Each
List price per bag - $66.15

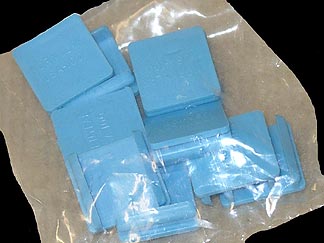

Mini-Wheel JWXA111 spacers set (JSA100). Click to enlarge.
JXA111
JXA111 Spacers (JSA 100)
Bagged 110 each

List price per bag - $12.65

Kornylak's Mini-Wheels® are for lightweight conveyors such as carton flow and gravity flow racks. The Mini-Wheel® has a simple snap-in design that allows for fast, easy assembly. With its all plastic construction, it will never rust and the aluminum rail are corrosion resistant, permitting applications with exposure to weather, water, many chemicals, and steam cleaning. No lubrication is required with Mini-Wheels®; they run dry and never need oil or grease.
